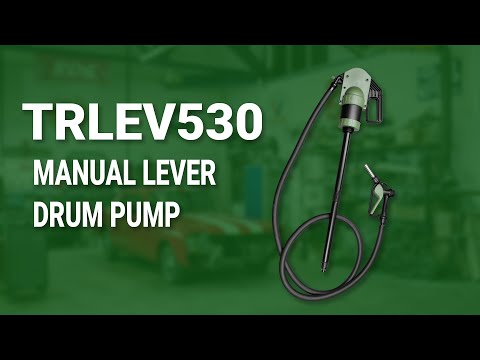

TRLEV530 | Segmented Lever-Action Barrel Pump

TRLEV530 | Segmented Lever-Action Barrel Pump

Regular price $164.99
Regular price Sale price $164.99
Sale Not Available
Shipping calculated at checkout.
Size

Specifications

  • Power: Lever-Action (Manual)
  • Flow Rate: 1 Gallon per 8 Strokes
  • Suction Tube: 12 inch ~ 38 inch
  • Discharge Hose: 10 ft.
  • Compatible Liquids: Kerosene, Diesel, Lubricants, Hydraulic Oil (ex AW46)

Details

Power

  • No Electricity Required; Utilizes siphon action to transfer liquids by a simple grip and pump

Air Vent Valve Cap

  • To release air pressure from the pump simply twist the valve cap located atop of the pump

Bung Adapter

  • 2-inch Bung Adapter
  • Screw locking nut to secure the pump to drum bung hole

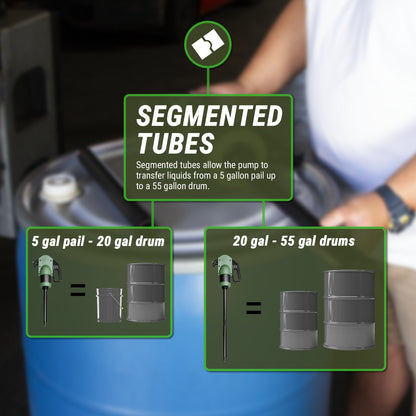

Segmented Suction Tube

  • Two Piece Suction Tube for 30 to 55 Gallon Drum Barrels
  • Bottom Piece for 5 Gallon to 20 Gallon Drum Barrels

Flow Control Nozzle

  • Control the rate of liquid at any moment by squeezing the Nozzle lever
  • Built-in lever locking mechanism

Swivel Connection

  • Nozzle connection is able to perform a 360 degree rotation to prevent hose from tangling

Incompatible

  • Acetone, Benzene, Creosol, Ethyl, Phenol, Methyl Ethylene, Concentrated Acids, Thinners, Solvents, etc.

What's Included

  • Pump Body, Suction Tubes, Nozzle + Hose & Manual

How to Use

Caution

  1. Do not run dry
  2. Wear proper personal protective equipment
  3. Never operate pump near fire or source of spark
  4. Do not turn the pump upside down after use
  5. Operate only in open, cool, and well-ventilated areas
  6. Do not over tighten any part

Warranty

Backed by a 1-Year Manufacturers Warranty
